GLIDECATH® Hydrophilic Coated Catheter
PRODUCT OVERVIEW
GLIDECATH® is a hydrophilically coated, angiographic catheter providing the vessel selectivity and navigation required for a wide variety of diagnostic or interventional procedures.
- Navigate difficult vessel anatomy with smooth tracking facilitated by TERUMO Glide Technology™
- Leverage superior kink resistance to achieve ideal flow rates for diagnostic imaging1,*

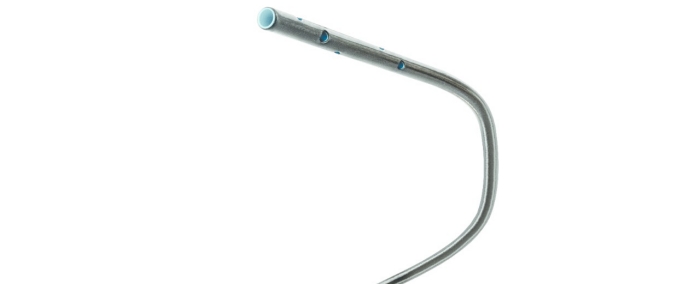

SINGLE-BRAIDED
- Reach distal visceral vessels with best-in-class trackability1,*
- Approach tortuous anatomy with best-in-class pushability1,*
*When compared to Merit Impress and AngioDynamics Mariner during mechanical bench testing
DOUBLE-BRAIDED
- Access and cross challenging lesions with excellent pushability and torquability1
- Achieve superior device delivery through a nylon-rich inner layer1,*
- Leverage superior kink resistance to maintain lumen integrity throughout the procedure1,*

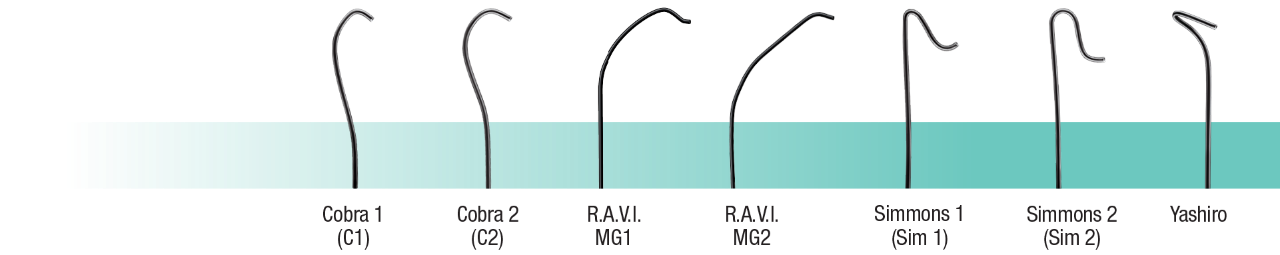

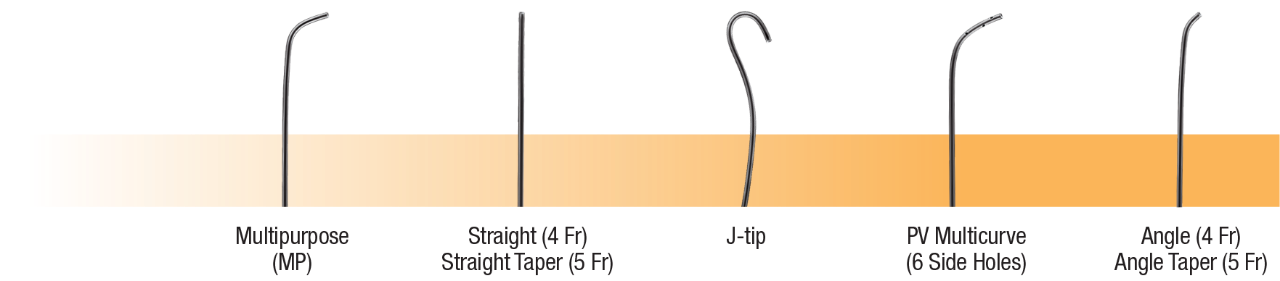

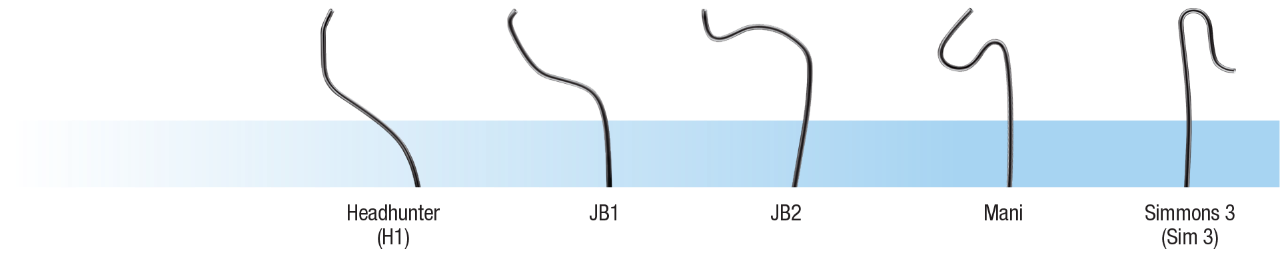

TIP SHAPE PORTFOLIO
GLIDECATH® is offered in 17 unique tip shapes that are designed for various anatomy.
PRODUCT CODES
GLIDECATH® 4 Fr Product Codes
| TIP SHAPES | CATHETER LENGTH | |||||||
| 4 Fr | 65 cm | 70 cm | 100 cm | 120 cm | 125 cm | 135 cm | 150 cm | |
| Straight | CG412 | - | CG413 | CG414 | - | - | CG431 | |
| Angle | CG415 | - | CG416 | CG417 | - | - | CG432 | |
| C1 | CG408 | - | - | - | - | - | - | |
| C2 | CG409 | - | CG410 | - | - | - | CG434 | |
| J-Tip | CG411 | - | - | - | - | - | - | |
| Yashiro* | - | CG422 | - | - | - | - | - | |
| Sim 1 | - | - | CG401 | - | - | - | - | |
| Sim 2 | - | - | CG402 | - | - | - | - | |
| Sim 3 | - | - | CG403 | - | - | - | - | |
| H1 | - | - | CG404 | - | - | - | - | |
| JB1 | - | - | CG405 | - | - | - | - | |
| JB2 | - | - | CG406 | - | - | - | - | |
| RAVI MG1 | - | - | - | - | CG440 | - | - | |
| RAVI MG2 | - | - | - | - | - | CG441 | CG442 | |
| MP | - | - | CG418 | - | - | - | - | |
| Mani | - | - | CG407 | - | - | - | - | |
| Pigtail | - | - | - | - | - | - | CG433 | |
| PV Multicurve | - | - | - | - | - | - | CG430 | |
GLIDECATH® 5 Fr Product Codes
| TIP SHAPES | CATHETER LENGTH | |||||||
| 5 Fr | 65 cm | 70 cm | 100 cm | 120 cm | 125 cm | 135 cm | 150 cm | |
| Straight | CG505 | - | CG506 | - | - | - | - | |
| Angle Taper | CG507 | - | CG508 | - | - | - | - | |
| C1 | CG501 | - | - | - | - | - | ||
| C2 | CG502 | - | CG503 | - | - | - | - | |
| J-Tip | CG504 | - | - | - | - | - | - | |
| Yashiro* | - | CG519 | - | - | - | - | - | |
| Sim 1 | - | - | CG510 | - | - | - | - | |
| Sim 2 | CG521 | - | CG511 | - | - | - | - | |
| Sim 3 | - | - | CG512 | - | - | - | - | |
| H1 | - | - | CG513 | - | - | - | - | |
| JB1 | - | - | CG514 | - | - | - | - | |
| JB2 | - | - | CG515 | - | - | - | - | |
| MP | - | - | CG509 | - | - | - | - | |
| Mani | - | - | CG516 | - | - | - | - | |
GLIDECATH® 5 Fr XP Product Codes
| TIP SHAPES | CATHETER LENGTH | |||||||
| 5 Fr XP | 65 cm | 70 cm | 100 cm | 120 cm | 125 cm | 135 cm | 150 cm | |
| Straight | RF*ZM7510GM | - | RF*ZM75110M | - | - | - | RF*ZM75115JM | |
| Angle | RF*ZV9510GM | - | RF*ZV95110M | - | - | - | - | |
| C2 | RF*ZB5510GM | - | - | - | - | - | ||
| Sim 1 | - | - | RF*WA15110M | - | - | - | - | |
| Sim 2 | - | - | RF*WA25110M | - | - | - | - | |
| H1 | - | - | RF*WB15110M | - | - | - | - | |
| RAVI MG1 | - | - | - | - | RF*ZRV511CM | - | - | |
| RAVI MG2 | - | - | - | - | - | RF*ZUF511DJM | RF*ZUF5115JM | |
PRODUCT SPECIFICATIONS
| 4 Fr | 5 Fr | 5 Fr XP | |
| Effective Lengths | 65 cm, 70 cm, 100 cm, 120 cm, 135 cm & 150 cm | 65 cm, 70 cm & 100 cm | 65 cm, 100 cm, 125 cm, 135 cm & 150 cm |
| Construction | Double-Braided Stainless Steel | Single-Braided Stainless Steel | Double-Braided Stainless Steel |
| Inner Diameter - Distal Tip | 0.0405” / 1.03 mm | 0.0433” / 1.10 mm | 0.0472” / 1.20 mm |
| Inner Diameter - Proximal Shaft | 0.0413” / 1.05 mm | 0.0441” / 1.12 mm | 0.0480” / 1.22 mm |
| Guidewire Compatibility | 0.038" | 0.038" | 0.038" |
| Maximum Injection Pressure | 750 psi | 1000 psi | 1000 psi |
| Shape | Straight Angle Cobra 1 (C1) Cobra 2 (C2) J-Tip Yashiro Simmons 1 (SIM1) Simmons 2 (SIM2) Simmons 3 (SIM3) Headhunter Berenstein 1 (BERN 1) Berenstein 2 (BERN 2) Multi-Purpose Mani PV Multicurve R.A.V.I. MG1 R.A.V.I. MG2 |
Straight Angle Cobra 1 (C1) Cobra 2 (C2) J-Tip Yashiro Simmons 1 (SIM1) Simmons 2 (SIM2) Simmons 3 (SIM3) Headhunter Berenstein 1 (BERN1) Berenstein 2 (BERN2) Multi-Purpose Mani |
Straight Angle Cobra 2 (C2) Simmons 1 (SIM1) Simmons 2 (SIM2) Headhunter R.A.V.I. MG1 R.A.V.I. MG2 |
| Hydrophilic Coating | Distal 15 cm & Distal 40 cm | Distal 25 cm & Distal 40 cm | Distal 15 cm & Distal 40 cm |
