GLIDECATH® Hydrophilic Coated Catheter
PRODUCT OVERVIEW

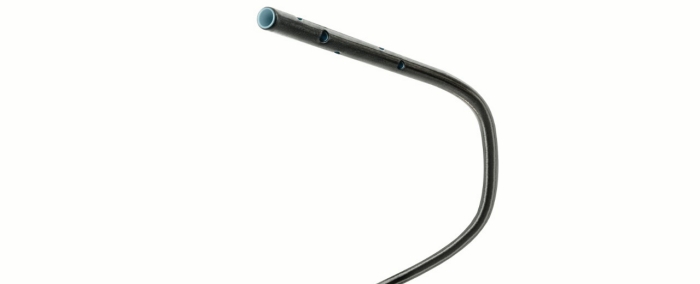

GLIDECATH® is a hydrophilically coated, angiographic catheter providing the vessel selectivity and navigation required for a wide variety of diagnostic or interventional procedures.
- Navigate difficult vessel anatomy with smooth tracking facilitated by TERUMO Glide Technology™
- Leverage superior kink resistance to achieve ideal flow rates for diagnostic imaging1,*
SINGLE-BRAIDED
- Reach distal visceral vessels with best-in-class trackability1,*
- Approach tortuous anatomy with best-in-class pushability1,*
*When compared to Merit Impress and AngioDynamics Mariner during mechanical bench testing
DOUBLE-BRAIDED
- Access and cross challenging lesions with excellent pushability and torquability1
- Achieve superior device delivery through a nylon-rich inner layer1,*
- Leverage superior kink resistance to maintain lumen integrity throughout the procedure1,*

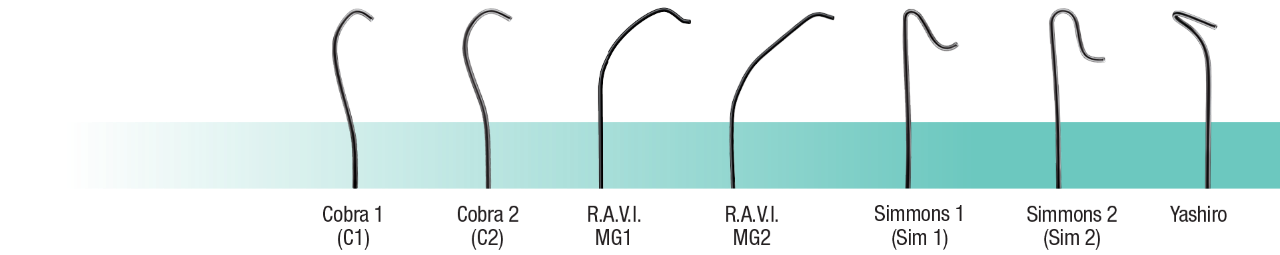

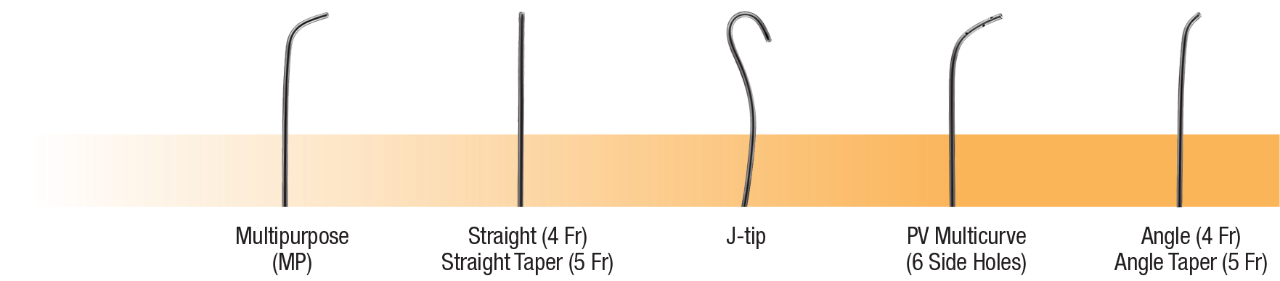

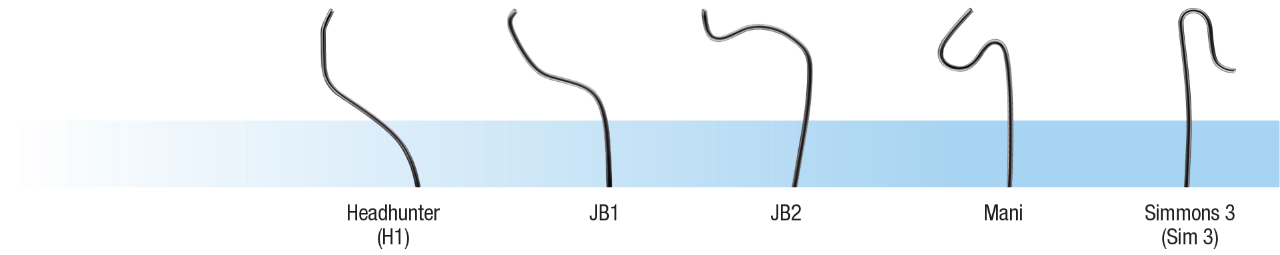

TIP SHAPE PORTFOLIO
GLIDECATH® is offered in 17 unique tip shapes that are designed for various anatomy.
PRODUCT CODES
GLIDECATH® 4 Fr Product Codes
| TIP SHAPES | CATHETER LENGTH | |||||||
| 4 Fr | 65 cm | 70 cm | 100 cm | 120 cm | 125 cm | 135 cm | 150 cm | |
| Straight | CG412 | - | CG413 | CG414 | - | - | CG431 | |
| Angle | CG415 | - | CG416 | CG417 | - | - | CG432 | |
| C1 | CG408 | - | - | - | - | - | - | |
| C2 | CG409 | - | CG410 | - | - | - | CG434 | |
| J-Tip | CG411 | - | - | - | - | - | - | |
| Yashiro* | - | CG422 | - | - | - | - | - | |
| Sim 1 | - | - | CG401 | - | - | - | - | |
| Sim 2 | - | - | CG402 | - | - | - | - | |
| Sim 3 | - | - | CG403 | - | - | - | - | |
| H1 | - | - | CG404 | - | - | - | - | |
| JB1 | - | - | CG405 | - | - | - | - | |
| JB2 | - | - | CG406 | - | - | - | - | |
| JR 4.0 | - | - | - | - | - | - | CG435 | |
| RAVI MG1 | - | - | - | - | CG440 | - | - | |
| RAVI MG2 | - | - | - | - | - | CG441 | CG442 | |
| MP | - | - | CG418 | - | - | - | - | |
| Mani | - | - | CG407 | - | - | - | - | |
| Pigtail | - | - | - | - | - | - | CG433 | |
| PV Multicurve | - | - | - | - | - | - | CG430 | |
GLIDECATH® 5 Fr Product Codes
| TIP SHAPES | CATHETER LENGTH | |||||||
| 5 Fr | 65 cm | 70 cm | 100 cm | 120 cm | 125 cm | 135 cm | 150 cm | |
| Straight | CG505 | - | CG506 | - | - | - | - | |
| Angle Taper | CG507 | - | CG508 | - | - | - | - | |
| C1 | CG501 | - | - | - | - | - | ||
| C2 | CG502 | - | CG503 | - | - | - | - | |
| J-Tip | CG504 | - | - | - | - | - | - | |
| Yashiro* | - | CG519 | - | - | - | - | - | |
| Sim 1 | - | - | CG510 | - | - | - | - | |
| Sim 2 | CG521 | - | CG511 | - | - | - | - | |
| Sim 3 | - | - | CG512 | - | - | - | - | |
| H1 | - | - | CG513 | - | - | - | - | |
| JB1 | - | - | CG514 | - | - | - | - | |
| JB2 | - | - | CG515 | - | - | - | - | |
| MP | - | - | CG509 | - | - | - | - | |
| Mani | - | - | CG516 | - | - | - | - | |
GLIDECATH® 5 Fr XP Product Codes
| TIP SHAPES | CATHETER LENGTH | |||||||
| 5 Fr XP | 65 cm | 70 cm | 100 cm | 120 cm | 125 cm | 135 cm | 150 cm | |
| Straight | RF*ZM7510GM | - | RF*ZM75110M | - | - | - | RF*ZM75115JM | |
| Angle | RF*ZV9510GM | - | RF*ZV95110M | - | - | - | - | |
| C2 | RF*ZB5510GM | - | - | - | - | - | ||
| Sim 1 | - | - | RF*WA15110M | - | - | - | - | |
| Sim 2 | - | - | RF*WA25110M | - | - | - | - | |
| H1 | - | - | RF*WB15110M | - | - | - | - | |
| RAVI MG1 | - | - | - | - | RF*ZRV511CM | - | - | |
| RAVI MG2 | - | - | - | - | - | RF*ZUF511DJM | RF*ZUF5115JM | |
PRODUCT SPECIFICATIONS
| 4 Fr | 5 Fr | 5 Fr XP | |
| Effective Lengths | 65 cm, 70 cm, 100 cm, 120 cm, 135 cm & 150 cm | 65 cm, 70 cm & 100 cm | 65 cm, 100 cm, 125 cm, 135 cm & 150 cm |
| Construction | Double-Braided Stainless Steel | Single-Braided Stainless Steel | Double-Braided Stainless Steel |
| Inner Diameter - Distal Tip | 0.0405” / 1.03 mm | 0.0433” / 1.10 mm | 0.0472” / 1.20 mm |
| Inner Diameter - Proximal Shaft | 0.0413” / 1.05 mm | 0.0441” / 1.12 mm | 0.0480” / 1.22 mm |
| Guidewire Compatibility | 0.038" | 0.038" | 0.038" |
| Maximum Injection Pressure | 750 psi | 1000 psi | 1000 psi |
| Shape | Straight Angle Cobra 1 (C1) Cobra 2 (C2) J-Tip Yashiro Simmons 1 (SIM1) Simmons 2 (SIM2) Simmons 3 (SIM3) Headhunter Berenstein 1 (BERN 1) Berenstein 2 (BERN 2) Multi-Purpose Mani PV Multicurve R.A.V.I. MG1 R.A.V.I. MG2 |
Straight Angle Cobra 1 (C1) Cobra 2 (C2) J-Tip Yashiro Simmons 1 (SIM1) Simmons 2 (SIM2) Simmons 3 (SIM3) Headhunter Berenstein 1 (BERN1) Berenstein 2 (BERN2) Multi-Purpose Mani |
Straight Angle Cobra 2 (C2) Simmons 1 (SIM1) Simmons 2 (SIM2) Headhunter R.A.V.I. MG1 R.A.V.I. MG2 |
| Hydrophilic Coating | Distal 15 cm & Distal 40 cm | Distal 25 cm & Distal 40 cm | Distal 15 cm & Distal 40 cm |
REFERENCES
RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.
