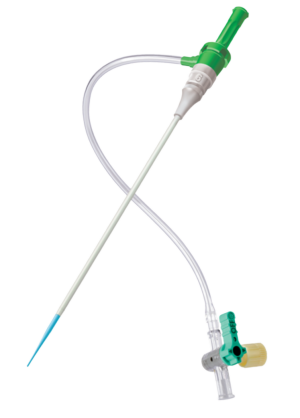

GLIDESHEATH SLENDER® Hydrophilic Coated Introducer Sheath
PRODUCT OVERVIEW
RADIAL ACCESS WITHOUT COMPROMISE1
The Glidesheath Slender Sheath is designed with a thin wall structure where the outside diameter is reduced by one French size while the inner-diameter equivalent is maintained.
The Glidesheath Slender Sheath is coated with Terumo’s proprietary Glide Technology™ hydrophilic coating, allowing for smooth insertion and removal.
FEATURES & BENEFITS
BEST IN CLASS HYDROPHILIC COATING & TAPERED TIP DESIGN3
Per the American Heart Association, dedicated radial sheaths with hydrophilic coating combined with smaller diameter sheaths and a tapered tip design may reduce risk of arterial spasm and radial occlusion2

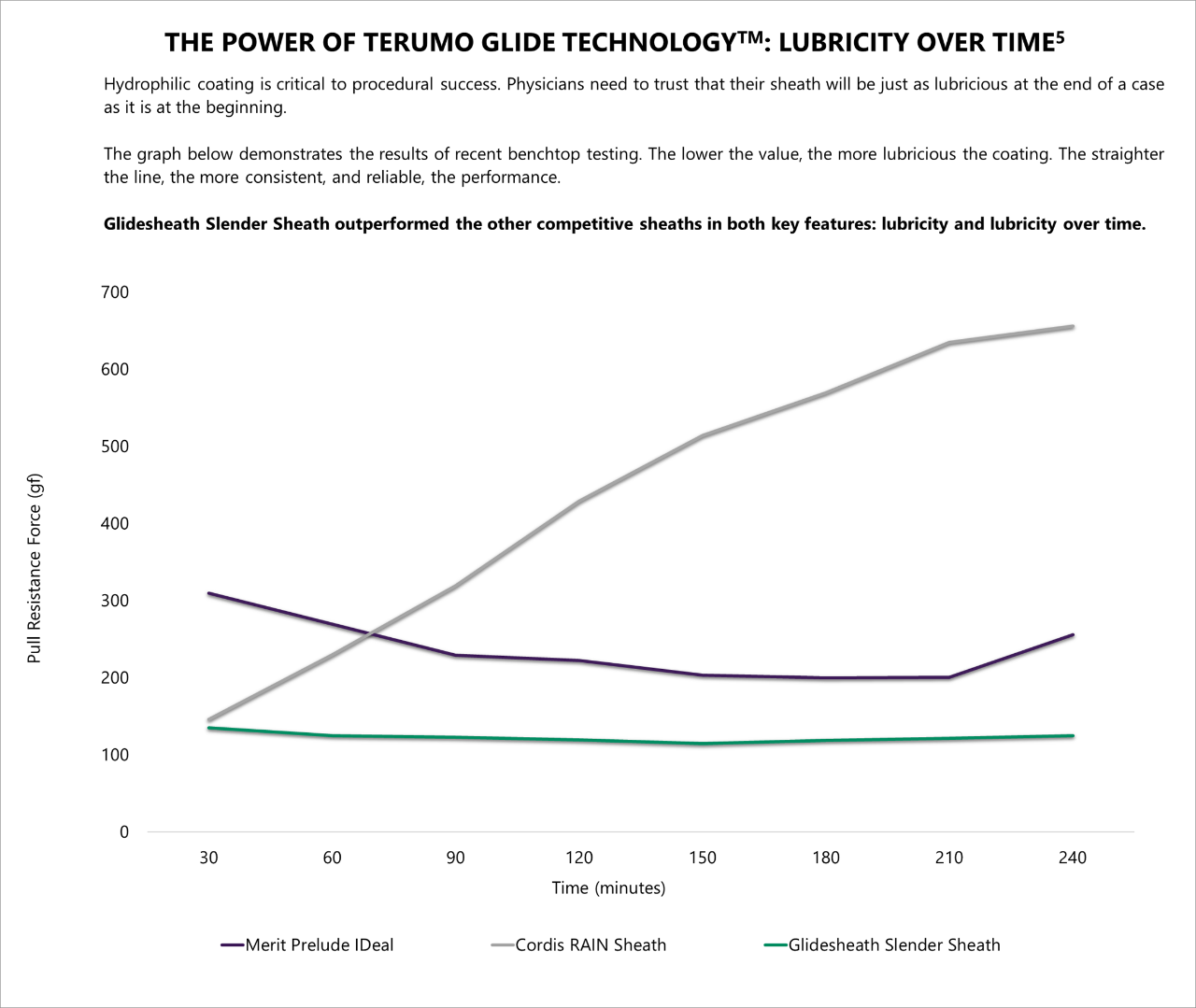

Featuring Terumo’s Glide Technology™, the Glidesheath Slender Sheath is the only thin wall radial sheath on the market to demonstrate superior and consistent performance in lubricity and lubricity durability over time3
The Glidesheath Slender Sheath is the only thin wall sheath that demonstrated best in class performance in all of the American Heart Association’s identified critical features that lead to reduced spasm4
THIN WALL TECHNOLOGY
The thin wall technology featured on the Glidesheath Slender Sheath is designed to facilitate atraumatic radial access while maintaining an optimal sheath-to-artery ratio
Allows physicians to perform diagnostic and interventional procedures without upsizing to a larger sheath
UNMATCHED CLINICAL EVIDENCE6
A meta-analysis of 10 clinical papers, involving 3,821 patients, demonstrated that use of Glidesheath Slender Sheath is associated with high rates of procedural success and low rates in performance related issues
In studies measuring patient comfort, patients who underwent percutaneous transradial procedures with the Glidesheath Slender Sheath reported none to low amounts of pain
THE MARKET LEADER IN RADIAL ACCESS7
In recent market research, the Glidesheath Slender Introducer Sheath was identified as the most recognized, most influential, most utilized and most trusted radial access sheath in the market
Contact your local Terumo Representative today to see why the Glidesheath Slender Introducer Sheath is the preferred choice for radial access.
PRODUCT CODES
The Glidesheath Slender Introducer Sheath comes in three kit options: Access, Stainless Steel and Nitinol. Please see below for more information.
STAINLESS STEEL
The Glidesheath Slender® Stainless Steel Kit is intended for anterior wall puncture and is available in 5F, 6F and 7F sizes with length options of 10cm and 16cm. Each kit comes with a stainless steel guidewire and needle. Kit configurations are listed below:
Item Code |
Sheath |
Dilator |
Mini-Guidewire |
Needle |
Access Method |
80-1050 |
SS Kit – 5F 10cm |
0.021” |
Flex Straight 0.021” x 45cm |
21G 35mm |
Anterior Wall |
80-1055 |
SS Kit – 5F 10cm |
0.025” |
Flex Straight 0.025” x 45cm |
20G 35mm |
Anterior Wall |
80-1060 |
SS Kit – 6F 10cm |
0.021” |
Flex Straight 0.021” x 45cm |
21G 35mm |
Anterior Wall |
80-1065 |
SS Kit – 6F 10cm |
0.025” |
Flex Straight 0.025” x 45cm |
20G 35mm |
Anterior Wall |
80-1070 |
SS Kit – 7F 10cm |
0.021” |
Flex Straight 0.021” x 45cm |
21G 35mm |
Anterior Wall |
80-1075 |
SS Kit – 7F 10cm |
0.025” |
Flex Straight 0.025” x 45cm |
20G 35mm |
Anterior Wall |
80-1650 |
SS Kit – 5F 16cm |
0.021” |
Flex Straight 0.021” x 80cm |
21G 35mm |
Anterior Wall |
80-1660 |
SS Kit – 6F 16cm |
0.021” |
Flex Straight 0.021” x 80cm |
21G 35mm |
Anterior Wall |
80-1670 |
SS Kit – 7F 16cm |
0.021” |
Flex Straight 0.021” x 80cm |
21G 35mm |
Anterior Wall |
ACCESS KIT
The Glidesheath Slender® Access Kit is intended for double wall puncture and is available in 5F, 6F and 7F sizes with length options of 10cm and 16cm. Each kit comes with a plastic jacketed guidewire and angiocath needle. Kit configurations are listed below:
Item Code |
Sheath |
Dilator |
Mini-Guidewire |
Needle |
Access Method |
60-1050 |
A-Kit – 5F 10cm |
0.021” |
Plastic Shortangle 0.021” x 45cm |
22G 25mm |
Double Wall |
60-1055 |
A-Kit – 5F 10cm |
0.025” |
Plastic Shortangle 0.025” x 45cm |
20G 32mm |
Double Wall |
60-1060 |
A-Kit – 6F 10cm |
0.021” |
Plastic Shortangle 0.021” x 45cm |
22G 25mm |
Double Wall |
60-1065 |
A-Kit – 6F 10cm |
0.025” |
Plastic Shortangle 0.025” x 45cm |
20G 32mm |
Double Wall |
60-1070 |
A-Kit – 7F 10cm |
0.021” |
Plastic Shortangle 0.021” x 45cm |
22G 25mm |
Double Wall |
60-1075 |
A-Kit – 7F 10cm |
0.025” |
Plastic Shortangle 0.025” x 45cm |
20G 32mm |
Double Wall |
60-1650 |
A-Kit – 5F 16cm |
0.021” |
Plastic Shortangle 0.021” x 80cm |
22G 25mm |
Double Wall |
60-1660 |
A-Kit – 6F 16cm |
0.021” |
Plastic Shortangle 0.021” x 80cm |
22G 25mm |
Double Wall |
60-1670 |
A-Kit – 7F 16cm |
0.021” |
Plastic Shortangle 0.021” x 80cm |
22G 25mm |
Double Wall |
NITINOL KIT
The Glidesheath Slender® Nitinol Kit is intended for anterior wall puncture and is available in 5F, 6F and 7F sizes with a length of 10cm. Each kit comes with a nitinol guidewire and needle. Kit configurations are listed below:
Item Code |
Sheath |
Dilator |
Mini-Guidewire |
Needle |
Access Method |
50-1050 |
Nitinol Kit – 5F 10cm |
0.021” |
Nitinol/Floppy 0.021” x 43cm |
21G 38mm |
Anterior Wall |
50-1060 |
Nitinol Kit – 6F 10cm |
0.021” |
Nitinol/Floppy 0.021” x 43cm |
21G 38mm |
Anterior Wall |
50-1070 |
Nitinol Kit – 7F 10cm |
0.021” |
Nitinol/Floppy 0.021” x 43cm |
21G 38mm |
Anterior Wall |
REFERENCES
RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.
1. Data on file.
3, 5. When compared to the existing thin wall sheaths on the market: Merit Prelude IDeal and Cordis RAIN Sheath. The third-party trademarks used herein are trademarks of their respective owners. Data on file.
2. Mason. et al; Transradial Coronary Angiography and Intervention in ACS. Circ Cardiovasc Interv. 2018;11:e000035
4. Identified features are: “hydrophilic coating, smaller diameter and tapered tip design.” Mason. et al; Transradial Coronary Angiography and Intervention in ACS. Circ Cardiovasc Interv. 2018;11:e000035. When compared to the existing thin wall sheaths on the market: Merit Prelude IDeal and Cordis RAIN Sheath. The third-party trademarks used herein are trademarks of their respective owners. Data on file.
6. The Glidesheath Slender Sheath demonstrated unmatched clinical evidence in a third-party meta-analysis of clinical access studies. Data on file.
7. Data on file, pertains to North American market only.
