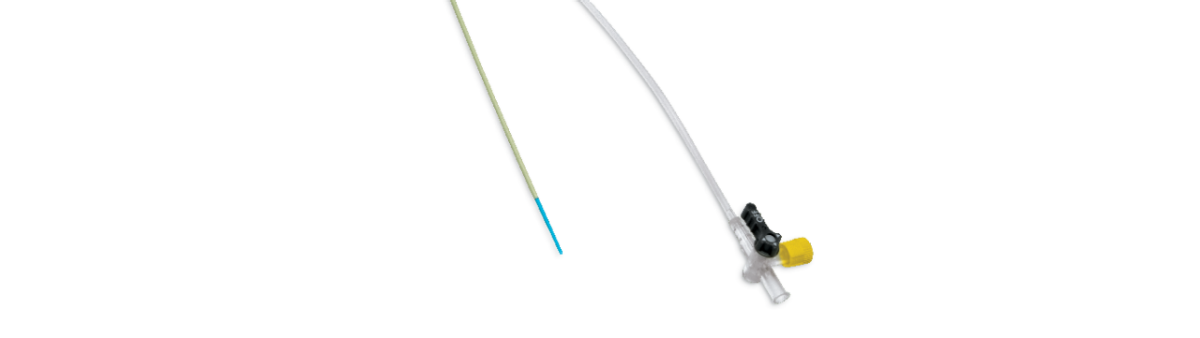

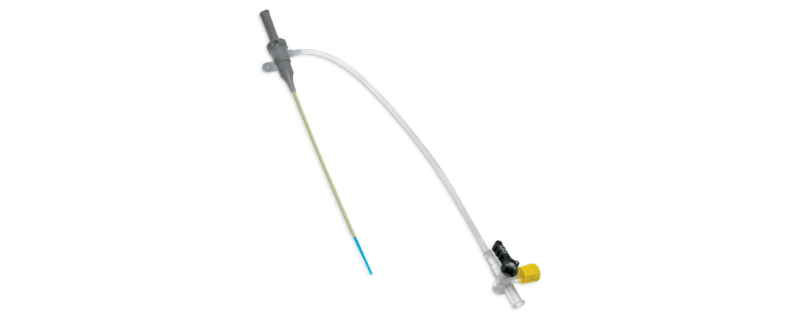

PINNACLE® Introducer Sheaths
Femoral Access Sheath for Coronary Procedures available in 4-11F, 10 or 25cm lengths1
- Smooth transition of guidewire to dilator and dilator-to-sheath1
- Kink resistant design1
- Small OD and large ID minimizes the size of the access site without compromising ease of device passage1
- Snap-on dilator lock prevents backout during insertion1
PINNACLE® Introducer Sheaths - Coronary Applications
| PRODUCT CODE | LENGTH | INNER DIAMETER | DILATOR PROTRUDING LENGTH | MINI GUIDEWIRE DIAMETER | MINI GUIDEWIRE LENGTH |
| RSS402 | 10 | 4 | 2.5 | .035* | 45 |
| RSS502 | 10 | 5 | 2.5 | .038* | 45 |
| RSS602 | 10 | 6 | 2.5 | .038* | 45 |
| RSS702 | 10 | 7 | 2.5 | .038* | 45 |
| RSS802 | 10 | 8 | 2.5 | .038* | 45 |
| RSS902 | 10 | 9 | 2.5 | .038* | 45 |
| RSS002 | 10 | 10 | 2.5 | .038* | 45 |
| RSS102 | 10 | 11 | 2.5 | .038* | 45 |
| RSS404 | 10 | 4 | 2.5 | ||
| RSS504 | 10 | 5 | 2.5 | ||
| RSS604 | 10 | 6 | 2.5 | ||
| RSS704 | 10 | 7 | 2.5 | ||
| RSS804 | 10 | 8 | 2.5 | ||
| RSS904 | 10 | 9 | 2.5 | ||
| RSS004 | 10 | 10 | 2.5 | ||
| RSS104 | 10 | 11 | 2.5 | ||
| RSS506 | 25 | 5 | 2.5 | ||
| RSS606 | 25 | 6 | 2.5 | ||
| RSS706 | 25 | 7 | 2.5 | ||
| RSS806 | 25 | 8 | 2.5 | ||
| RSS906 | 25 | 9 | 2.5 | ||
| RSS006 | 25 | 10 | 2.5 | ||
| RSS106 | 25 | 11 | 2.5 |
*Mini stainless steel spring coil guidewire included. Maximum guidewire compatible size: 0.035" for 4 Fr, 0.038" for all others
Reference:
- Data on file.
