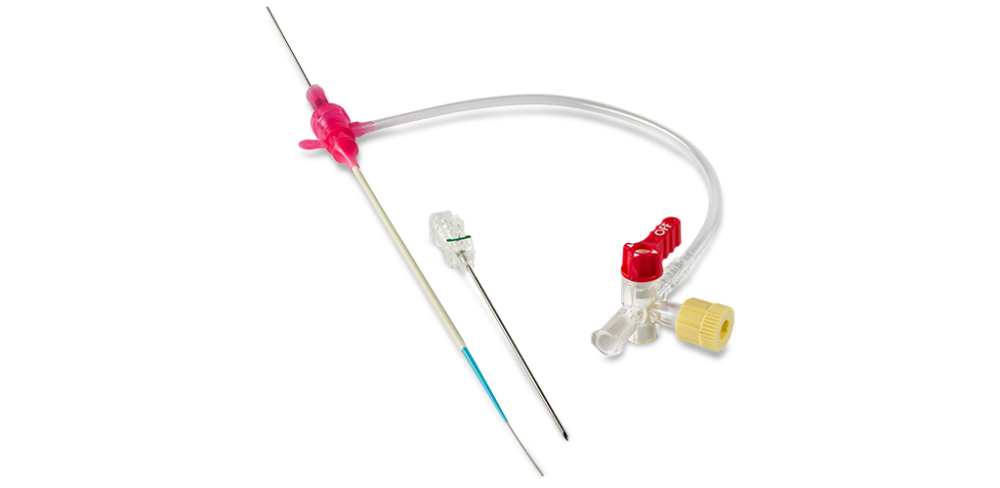

Product image: PINNACLEPRECISION ACCESS SYSTEM®Sheath to Help achieve smoothatraumatic vascular accessthrough calcified or scarredarteries

PINNACLE PRECISION ACCESS SYSTEM® Sheath

Smooth atraumatic access proven to help reduce complications and enable same-day discharge1

The unique design supports the lowest sheath penetration to minimize the size of the femoral access site. 1
Competitive sheath requires 77% higher insertion force than Total Integrated Fit (TIF) technology 1

  • Seamless sheath transition with Total Integrated Fit Technology (TIF) minimizes trauma and supports uncomplicated closing1
  • Greater rail strength to prevent buckling with the only 0.021” wire on the market1
  • Seamless guidewire-to-dilator and dilator-to-sheath transition for challenging access situations1
  • Highly flexible design resists kinking and helps reduce complications1
  • Micropuncture needle features tapered transitions from 21G tip to 19G shaft for better blood return1
  • Ultrasound guidance is facilitated by the enhanced visibility of the spiral echogenic tip. The needle tip also features back bevel cuts which help to ensure a straighter entry1

PINNACLE® PRECISION ACCESS SYSTEM

PRODUCT CODE  SHEATH SIZE (Fr) WIRE NEEDLE
70-4160 4 Nitinol Echogenic
70-4130 4 Stainless Steel Echogenic
70-5160 5 Nitinol Echogenic
70-5130 5 Stainless Steel Echogenic
70-6160 6 Nitinol Echogenic
70-6130 6 Stainless Steel Echogenic
70-7160 7 Nitinol Echogenic
70-7130 7 Stainless Steel Echogenic
70-8160 8 Nitinol Echogenic
70-8130 8 Stainless Steel Echogenic
70-4165 4 Stiff* Nitinol Echogenic
70-4135 4 Stiff* Stainless Steel Echogenic
70-5165 5 Stiff* Nitinol Echogenic
70-5135 5 Stiff* Stainless Steel Echogenic

*Includes a stiff dilator for greater pushability

References:

  1. Data on file.

RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.
