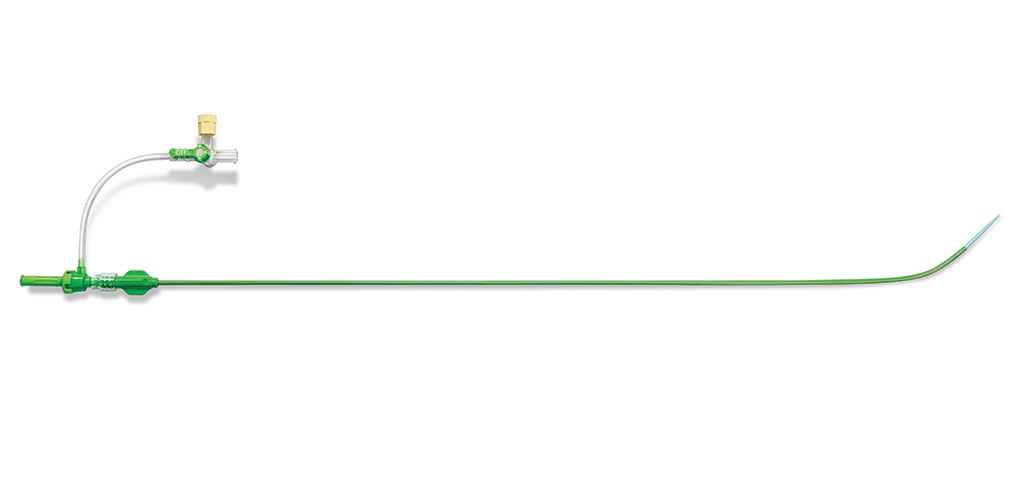

PINNACLE® DESTINATION® Guiding Sheath
PRODUCT OVERVIEW
Shapes and sizes to meet your interventional and diagnostic challenges
- Smooth Transitions1
- Provides Lesion Access1
- Enhances Visualization For Precise Positioning1
- Resists Kinking1

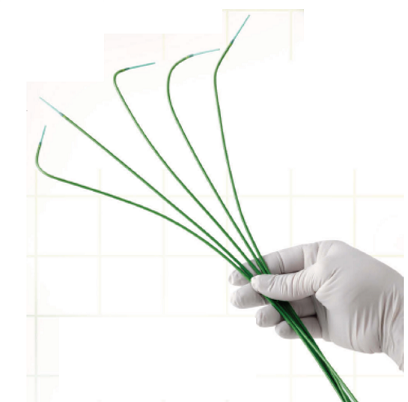

Multiple tip shapes available

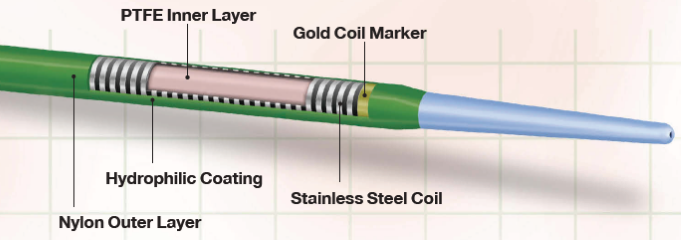

Cross-section
PINNACLE® DESTINATION® ID/OD REFERENCE CHART
| OUTER DIAMETER | INNER DIAMETER | |
| 5Fr | 45 cm - 0.098" (2.49 mm) | 0.076" (1.92 mm) |
| 6Fr | 45 cm - 0.109" (2.77 mm) | 0.087" (2.21 mm) |
| 6Fr | 65 cm - 0.111" (2.82 mm) | 0.087" (2.21 mm) |
| 6Fr | 90 cm - 0.111" (2.82 mm) | 0.087" (2.21 mm) |
| 7Fr | 45 cm - 0.122" (3.10 mm) | 0.101" (2.57 mm) |
| 7Fr | 65 cm - 0.122" (3.10 mm) | 0.101" (2.57 mm) |
| 7Fr | 90 cm - 0.122" (3.10 mm) | 0.101" (2.57 mm) |
| 8Fr | 45 cm - 0.136" (3.45 mm) | 0.115" (2.92 mm) |
| 8Fr | 65 cm - 0.136" (3.45 mm) | 0.115" (2.92 mm) |
| 8Fr | 90 cm - 0.136" (3.45 mm) | 0.115" (2.92 mm) |
PRODUCT CODES
| French Size | Product Code | Length (cm) | Hydrophilic Coating Length (cm) | Valve Type | Curve Style |
| 5Fr | 54-54502 | 45 | 5 | Cross-Cut | Hockey Stick |
| 5Fr | 54-54503 | 45 | 5 | Cross-Cut | Multi-Purpose |
| 5Fr | 54-54504 | 45 | 5 | Cross-Cut | RDC |
| 5Fr | 54-54501 | 45 | 35 | Cross-Cut | Straight |
| 6Fr | RSR02 | 45 | 5 | Cross-Cut | Hockey Stick |
| 6Fr | RSR14 | 45 | 5 | Cross-Cut | LIMA |
| 6Fr | RSR03 | 45 | 5 | Cross-Cut | Multi-Purpose |
| 6Fr | RSR13 | 45 | 5 | Cross-Cut | RDC |
| 6Fr | RSR01 | 45 | 5 | Cross-Cut | Straight |
| 6Fr | RSR08 | 45 | 5 | Tuohy-Borst | Hockey Stick |
| 6Fr | RSR18 | 45 | 5 | Tuohy-Borst | LIMA |
| 6Fr | RSR09 | 45 | 5 | Tuohy-Borst | Multi-Purpose |
| 6Fr | RSR17 | 45 | 5 | Tuohy-Borst | RDC |
| 6Fr | RSR07 | 45 | 5 | Tuohy-Borst | Straight |
| 6Fr | 54-64501 | 45 | 35 | Cross-Cut | Straight |
| 6Fr | 54-64506 | 45 | 35 | Tuohy-Borst | Straight |
| 6Fr | RSP01 | 65 | 35 | Cross-Cut | Straight |
| 6Fr | RSP03 | 65 | 35 | Tuohy-Borst | Straight |
| 6Fr | RSC07 | 90 | 15 | Cross-Cut | Multi-Purpose |
| 6Fr | RSC05 | 90 | 15 | Cross-Cut | Straight |
| 6Fr | RSC03 | 90 | 15 | Tuohy-Borst | Multi-Purpose |
| 6Fr | RSC01 | 90 | 15 | Tuohy-Borst | Straight |
| 7Fr | RSR05 | 45 | 5 | Cross-Cut | Hockey Stick |
| 7Fr | RSR16 | 45 | 5 | Cross-Cut | LIMA |
| 7Fr | RSR06 | 45 | 5 | Cross-Cut | Multi-Purpose |
| 7Fr | RSR15 | 45 | 5 | Cross-Cut | RDC |
| 7Fr | RSR04 | 45 | 5 | Cross-Cut | Straight |
| 7Fr | RSR11 | 45 | 5 | Tuohy-Borst | Hockey Stick |
| 7Fr | RSR20 | 45 | 5 | Tuohy-Borst | LIMA |
| 7Fr | RSR12 | 45 | 5 | Tuohy-Borst | Multi-Purpose |
| 7Fr | RSR19 | 45 | 5 | Tuohy-Borst | RDC |
| 7Fr | RSR10 | 45 | 5 | Tuohy-Borst | Straight |
| 7Fr | 54-74501 | 45 | 35 | Cross-Cut | Straight |
| 7Fr | 54-74506 | 45 | 35 | Tuohy-Borst | Straight |
| 7Fr | RSP02 | 65 | 35 | Cross-Cut | Straight |
| 7Fr | RSP04 | 65 | 35 | Tuohy-Borst | Straight |
| 7Fr | RSC08 | 90 | 15 | Cross-Cut | Multi-Purpose |
| 7Fr | RSC06 | 90 | 15 | Cross-Cut | Straight |
| 7Fr | RSC04 | 90 | 15 | Tuohy-Borst | Multi-Purpose |
| 7Fr | RSC02 | 90 | 15 | Tuohy-Borst | Straight |
| 8Fr | 54-84501 | 45 | 35 | Cross-Cut | Straight |
| 8Fr | 54-84506 | 45 | 35 | Tuohy-Borst | Straight |
| 8Fr | 54-86501 | 65 | 35 | Cross-Cut | Straight |
| 8Fr | 54-86506 | 65 | 35 | Tuohy-Borst | Straight |
| 8Fr | 54-89001 | 90 | 60 | Cross-Cut | Straight |
| 8Fr | 54-89006 | 90 | 60 | Tuohy-Borst | Straight |
5 Fr PINNACLE DESTINATION SPECIFICATIONS
| Effective Lengths | 45 cm | ||
| Construction | Stainless Steel Coil | ||
| Valve Type | Cross-Cut | ||
| Radiopaque Marker | Gold Coil | ||
| Outer Diameter | 0.098"/2.49 mm | ||
| Inner Diameter | 0.076"/1.92 mm | ||
| Tip Design/Shape | Straight Hockey Stick Multi-Purpose Renal Double Curve (RDC) Left Internal Mammary Artery (LIMA) |
||
| Hydrophilic Coating | Distal 5 cm & 35cm |
6 Fr PINNACLE DESTINATION SPECIFICATIONS
| Effective Lengths | 45 cm | 65 cm | 90 cm |
| Construction | Stainless Steel Coil | Stainless Steel Coil | Stainless Steel Coil |
| Valve Type | Cross-Cut/Tuohy-Borst | Cross-Cut/Tuohy-Borst | Cross-Cut/Tuohy-Borst |
| Radiopaque Marker | Gold Coil | Gold Coil | Gold Coil |
| Outer Diameter | 0.109"/2.77 mm | 0.111"/2.82 mm | 0.111"/2.82 mm |
| Inner Diameter | 0.087"/2.21 mm | 0.087"/2.21 mm | 0.087"/2.21 mm |
| Tip Design/Shape | Straight Hockey Stick Multi-Purpose Renal Double Curve (RDC) Left Internal Mammary Artery (LIMA) |
Straight | Straight Multi-Purpose |
| Hydrophilic Coating | Distal 5 cm & 35 cm | Distal 35 cm | Distal 15 cm |
7 Fr PINNACLE DESTINATION SPECIFICATIONS
| Effective Lengths | 45 cm | 65 cm | 90 cm |
| Construction | Stainless Steel Coil | Stainless Steel Coil | Stainless Steel Coil |
| Valve Type | Cross-Cut/Tuohy-Borst | Cross-Cut/Tuohy-Borst | Cross-Cut/Tuohy-Borst |
| Radiopaque Marker | Gold Coil | Gold Coil | Gold Coil |
| Outer Diameter | 0.122"/3.10 mm | 0.122"/3.10 mm | 0.122"/3.10 mm |
| Inner Diameter | 0.101"/2.57 mm | 0.101"/2.57 mm | 0.101"/2.57 mm |
| Tip Design/Shape | Straight Hockey Stick Multi-Purpose Renal Double Curve (RDC) Left Internal Mammary Artery (LIMA) |
Straight | Straight Multi-Purpose |
| Hydrophilic Coating | Distal 5 cm & 35 cm | Distal 35 cm | Distal 15 cm |
8 Fr PINNACLE DESTINATION SPECIFICATIONS
| Effective Lengths | 45 cm | 65 cm | 90 cm |
| Construction | Stainless Steel Coil | Stainless Steel Coil | Stainless Steel Coil |
| Valve Type | Cross-Cut/Tuohy-Borst | Cross-Cut/Tuohy-Borst | Cross-Cut/Tuohy-Borst |
| Radiopaque Marker | Gold Coil | Gold Coil | Gold Coil |
| Outer Diameter | 0.136"/3.45 mm | 0.136"/3.45 mm | 0.136"/3.45 mm |
| Inner Diameter | 0.115"/2.92 mm | 0.115"/2.92 mm | 0.115"/2.92 mm |
| Tip Design/Shape | Straight | Straight | Straight |
| Hydrophilic Coating | Distal 35 cm | Distal 35 cm | Distal 60 cm |
REFERENCES
RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use.
1. Data on File.
