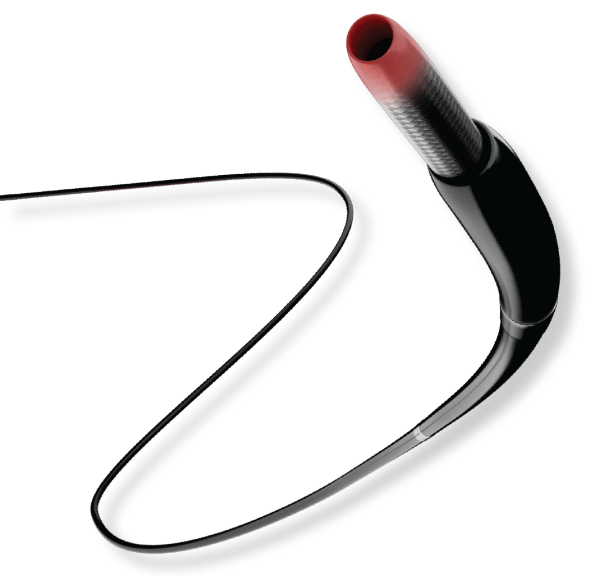

NAVICROSS® Support Catheter

NAVICROSS® Support Catheters - Your first choice peripheral support catheter with best-in-class performance*

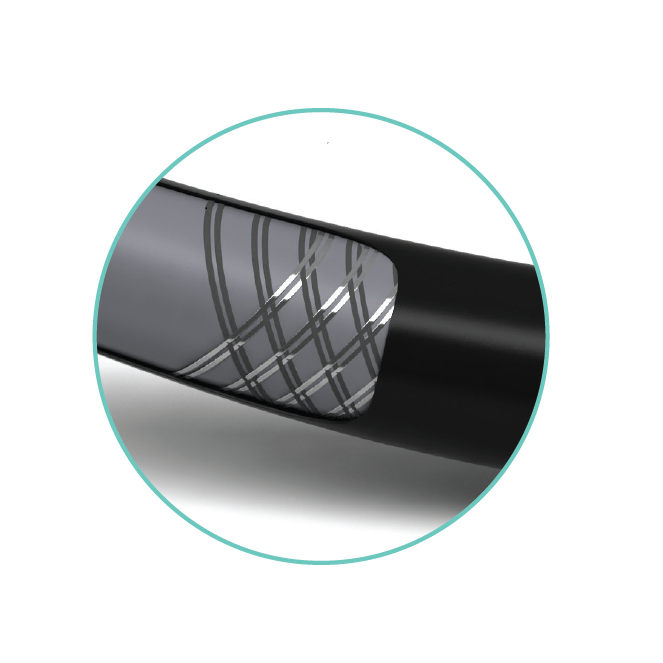

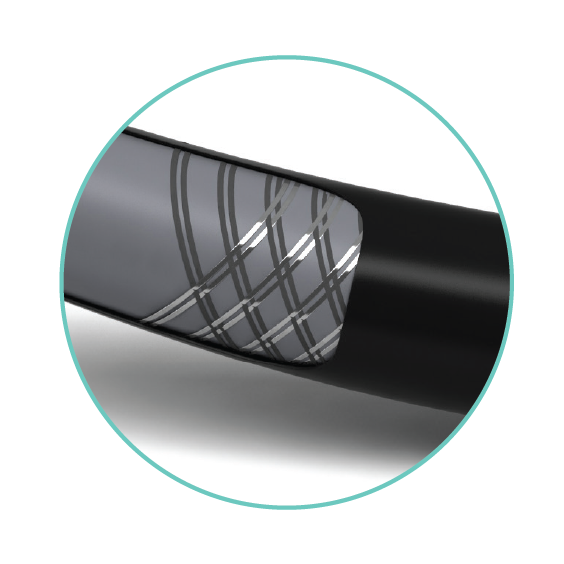

Double-Braided Stainless Steel

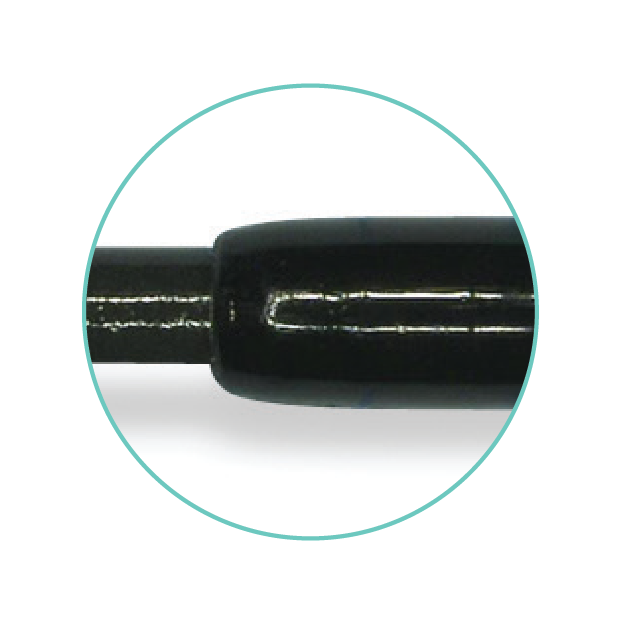

12mm Tapered Tip

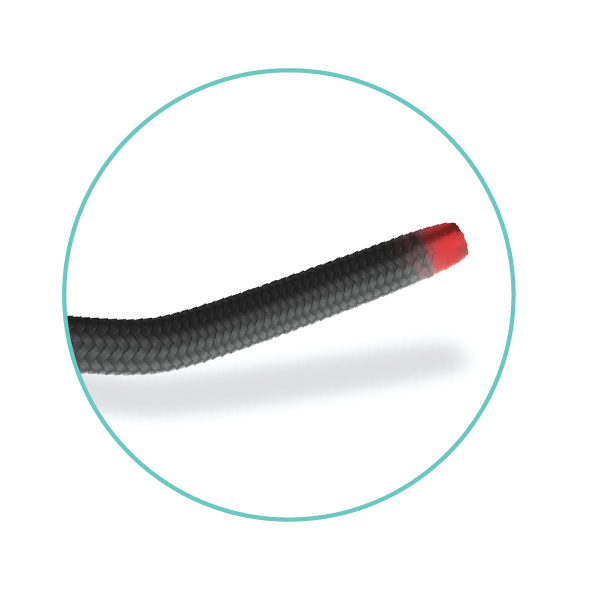

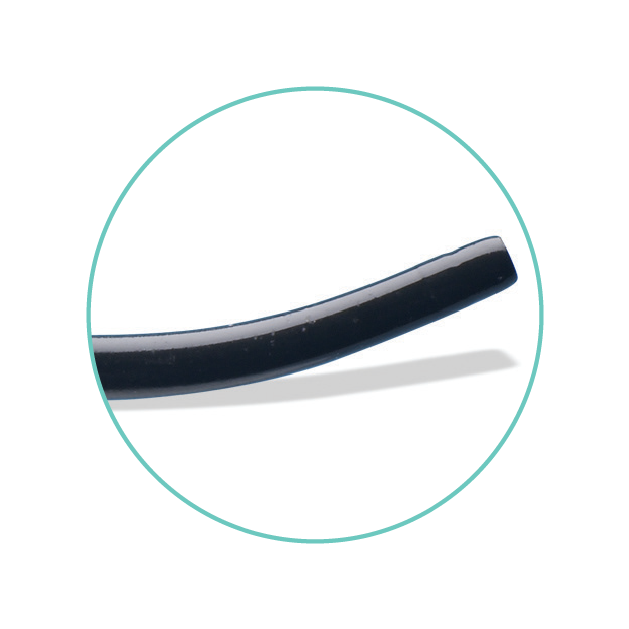

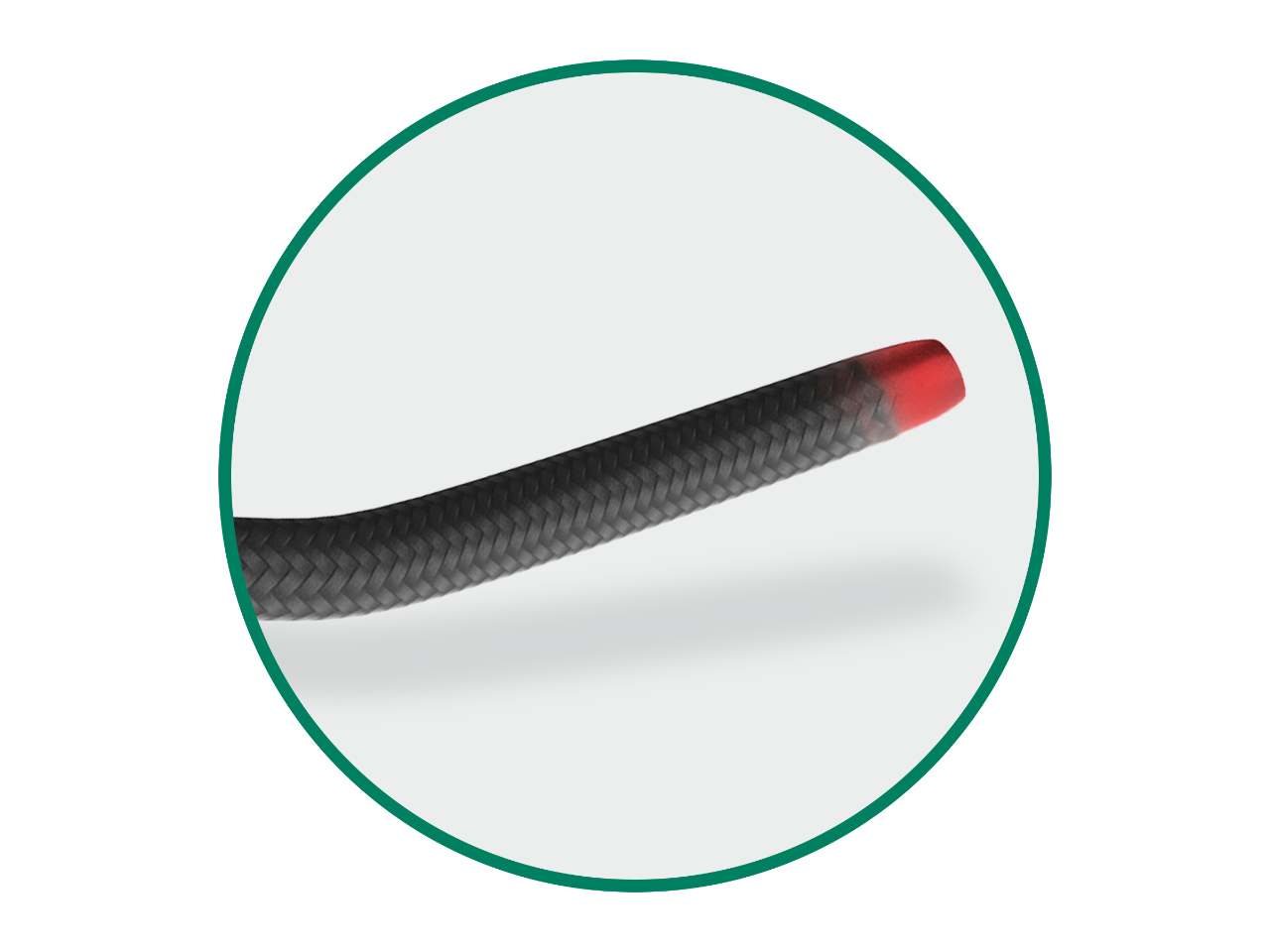

Straight and 30° Angled Tips

*When compared to leading competitors.
NAVICROSS Support Catheters Bench Top Testing, 2014 Data on File.





NAVICROSS® Support Catheter logo

Unmatched Pushability

NAVICROSS® Support Catheter pushability versus competitors


    Power Generated at Tip (gf)    n=5

Highest Wire Support

NAVICROSS® Support Catheter wire support versus competitors


    Power Generated at Tip (gf)
n=5

NAVICROSS® PRODUCT SKUs

PRODUCT CODE WIRE COMPATIBILITY CATHETER LENGTH
TIP SHAPE
NC35650 0.035" 65cm Straight
NC35651 0.035" 65cm 30° Angle
NC35900 0.035" 90cm Straight
NC35901 0.035" 90cm 30° Angle
NC35130 0.035" 135cm Straight
NC35131 0.035" 135cm 30° Angle
NC35150 0.035" 150cm Straight
NC35151 0.035" 150cm 30° Angle

NAVICROSS® SPECIFICATIONS

Effective Lengths 65 cm, 90 cm, 135 cm, 150 cm

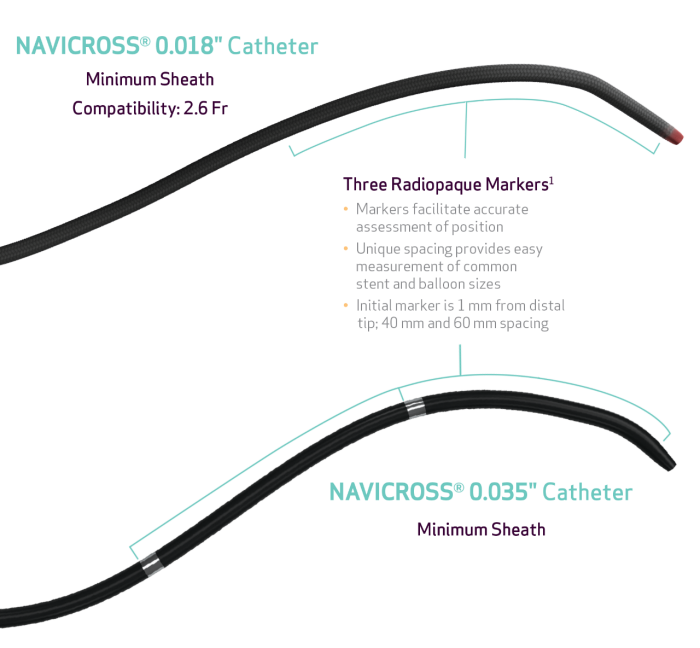

Number of Radiopaque Markers 3
Distance From Distal Tip To First Radiopaque Marker 1 mm
Radiopaque Marker Spacing 40 mm, 60 mm
Guidewire Compatibility 0.035"
Maximum Injection Pressure 750 psi
Minimum Introducer Sheath Compatibility 4 Fr
Tip Design / Shape Straight, 30° Angle
Hydrophilic Coating Distal 40 cm

RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.
