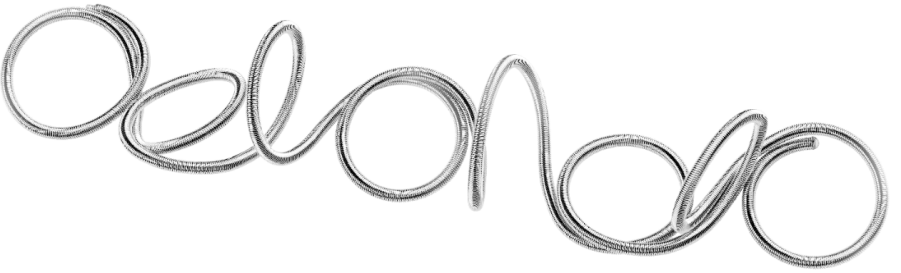

AZUR® CX Peripheral Coil System
Optimize Outcomes in More Procedures
Soft, flexible and precise for controlled delivery
- Mechanical occlusion — less reliance on thrombus formation
- Soft feel with up to 30 minutes repositioning time
Designed to form a solid core
- Enables expansion between the gaps with Hydrogel that will not be absorbed by the body3,4
Ease of deployment
- Use the AZUR® Detachment System for precise positioning and placement
- Minimize catheter manipulation with unique coil design
Expand Your Options
The introduction of 2 and 3 mm sizes enables AZUR® CX to support more procedures, including:
Small Vessel Embolization
- Gastrointestinal bleeds
- Pre-Y-90 embolization
- Prostate artery embolization
- Other pelvic vasculature embolizations
Large Vessel Embolization
- Internal Iliac Procedures
- Pelvic congestion syndrome
- Varicocele embolization
- Peripheral Aneurysms
- Arteriovenous malformations
AZUR® CX DETACHABLE 0.018” SYSTEM
| PRODUCT CODE | LOOP DIAMETER (MM) |
LENGTH† (CM) |
| 45-780202 | 2 | 2 |
| 45-780204 | 2 | 4 |
| 45-780304 | 3 | 4 |
| 45-780308 | 3 | 8 |
| 45-780413 | 4 | 13 |
| 45-780516 | 5 | 16 |
| 45-780620 | 6 | 20 |
| 45-780724 | 7 | 24 |
| 45-780828 | 8 | 28 |
| 45-780928 | 9 | 28 |
| 45-781032 | 10 | 32 |
| 45-781238 | 12 | 38 |
| 45-781434 | 14 | 34 |
| 45-781639 | 16 | 39 |
| 45-781836 | 18 | 36 |
| 45-782040 | 20 | 40 |
Pack of 1
AZUR® CX DETACHABLE 0.035” SYSTEM
| PRODUCT CODE | LOOP DIAMETER (MM) |
LENGTH† (CM) |
| 45-750407 | 4 | 7 |
| 45-750511 | 5 | 11 |
| 45-750609 | 6 | 9 |
| 45-750617 | 6 | 17 |
| 45-750812 | 8 | 12 |
| 45-750824 | 8 | 24 |
| 45-751019 | 10 | 19 |
| 45-751324 | 13 | 24 |
| 45-751632 | 16 | 32 |
| 45-752039 | 20 | 39 |
Pack of 1
*†Length is calculated from the tip of the coil to the point of connection with the pusher wire when the coil is straight.
CATHETER ID REQUIREMENTS
| COIL TYPE | INCHES (MINI-MAX) |
MILLIMETERS (MINI-MAX) |
REPOSITIONING TIME |
| AZUR® CX 0.018" | .019 - .027 | .48 - .69 | 30 minutes |
| AZUR® CX 0.035" | .041 - .047 | 1.04 - 1.19 | 20 minutes |
DETACHABLE CONTROLLER FOR USE WITH DETACHABLE SYSTEMS
| PRODUCT CODE | PRODUCT DESCRIPTION |
| 45-4001 | AZUR® Detachment Controller |
Pack of 5
References:
1. Ding YH, Dai D, Lewis DA, Cloft HJ, Kallmes DF. Angiographic and histologic analysis of experimental aneurysms embolized with platinum coils, Matrix, and HydroCoil. AJNR Am J Neuroradiol. 2005 Aug;26(7):1757-63. (animal study)
2. Fanning NF, Berentei Z, Brennan PR, Thornton J. HydroCoil as an adjuvant to bare platinum coil treatment of 100 cerebral aneurysms. Neuroradiology. 2006. doi: 10.1007/s00234-006-0166-0. (in-vivo study)
3. Pelage JP. Angiographic and Pathologic Comparison of HydroCoils vs. Fibered Coils Mechanisms of Occlusion and Mid-Term Recanalization in an Animal Model. GEST. 2012 (animal study)
4. Plenk H, Killer M, Richling B. Pathophysiologic considerations on HydroCoil- and platinum coil-occluded retrieved human cerebral aneurysms. Presented at ASITN MicroVention Symposium. 2005 (in-vivo study)
5. Data on File.
RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.
