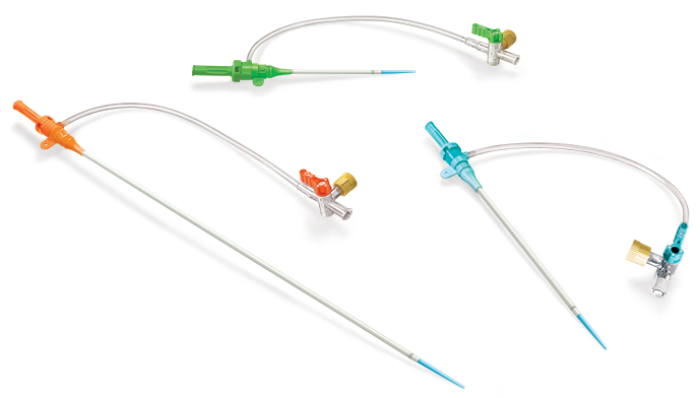

PINNACLE® R/O II Radiopaque Marker
Introducer Sheaths
Radiopaque Marker Introducer Sheaths available from 4-9FR, lengths of 6cm, 10cm and 25cm to meet all of your procedural needs.
Platinum/iridium radiopaque marker band is designed to enhance visibility.
- Smooth surface over the radiopaque marker reduces friction upon insertion and precision placement of the distal tip1
- Small OD and large ID minimizes the size of the access site without compromising ease of device passage1
- Kink resistant design and material1
- Smooth transition of guidewire-to-dilator and dilator-to-sheath1
Radiopaque Marker Introducer Sheaths
| PRODUCT CODE | LENGTH (CM) | INNER DIAMETER (FR) | DILATOR PROTRUDING LENGTH (CM) | MINI GUIDEWIRE DIAMETER (IN) |
| RSB501 | 6 | 5 | 2.5 | |
| RSB601 | 6 | 6 | 2.5 | |
| RSB701 | 6 | 7 | 2.5 | |
| RSB402 | 10 | 4 | 2.5 | |
| RSB502 | 10 | 5 | 2.5 | |
| RSB602 | 10 | 6 | 2.5 | |
| RSB702 | 10 | 7 | 2.5 | |
| RSB802 | 10 | 8 | 2.5 | |
| RSB902 | 10 | 9 | 2.5 | |
| RSB503 | 25 | 5 | 2.5 | |
| RSB603 | 25 | 6 | 2.5 | |
| RSB703 | 25 | 7 | 2.5 | |
| RSB803 | 25 | 8 | 2.5 | |
| RSB903 | 25 | 9 | 2.5 | |
| RSB611 | 6 | 6 | 2.5 | 0.038 |
| RSB711 | 6 | 7 | 2.5 | 0.038 |
| RSB412 | 10 | 4 | 2.5 | 0.035 |
| RSB512 | 10 | 5 | 2.5 | 0.038 |
| RSB612 | 10 | 6 | 2.5 | 0.038 |
| RSB712 | 10 | 7 | 2.5 | 0.038 |
| RSB812 | 10 | 8 | 2.5 | 0.038 |
Reference:
- Data on file.
RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.
