AZUR HydroPack™ Peripheral Coil System

SOFT PACKING. LONG LASTING.

For endovascular embolization, AZUR HydroPack coil system gives you the softness you want, with the reliable and long-lasting occlusion you expect from AZUR Hydrogel coils.

Without the need to size the vessel diameter, AZUR HydroPack coil system can be used in a variety of vessel sizes in the peripheral vasculature given prior placement of an anchor or framing coil.1

A New AZUR Treatment Algorithm2

AZUR HydroPack coil system is designed to fill volume behind AZUR CX coil for vessel occlusion, and inside of the AZUR Framing Coil for aneurysm occlusion.1

Vessel

  • The diameter of the first coil should never be less than the width of the diameter of the vessel
           ◦ A first coil of appropriate diameter is required to begin

  • Utilize AZUR HydroPack coil system for tight packing behind previously placed coil(s)

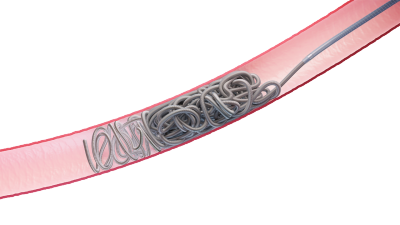

Image of Hydropack coil in a vessel

Aneurysm

  • The diameter of the first coil should never be less than the width of the aneurysm neck
            ◦ Initial coil(s) of appropriate diameter required to begin
  • Fill space with volumetrically efficient coils sizing down as less space is available
  • Utilize AZUR HydroPack coil system to find open space within the aneurysmal sac

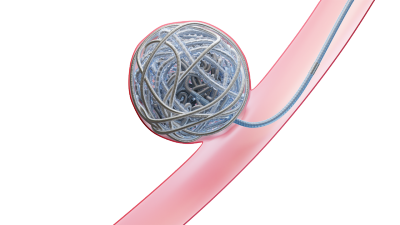

Image of Hydropack in an aneurysm

PRODUCT SPECIFICATIONS

Order Code Description Length Microcatheter Compatibility*  Softness Hydrogel
Progreat 2.4Fr Progreat 2.8Fr
45-880005 AZUR HydroPack 18 5cm 5cm √ √ √ √
45-880010 AZUR HydroPack 18 10cm 10cm √ √ √ √
45-880020 AZUR HydroPack 18 20cm 20cm √ √ √ √
45-880035 AZUR HydroPack 18 35cm 35cm √ √ √ √
45-880050 AZUR HydroPack 18 50cm 50cm √ √ √ √
45-880060 AZUR HydroPack 18 60cm 60cm √ √ √ √
*AZUR HydroPack coil system is compatible with microcatheters ranging from 0.021" - 0.027" I.D.

AZUR HydroPack IFU

REFERENCES

RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.

  1. Data on file.
  2. AZUR HydroPack coil system IFU100206
