AZUR® Peripheral HydroCoil Embolization System
Superior Filling Volume and Packing Density
AZUR Peripheral Hydrocoil Embolization System - The Technology of Expansion

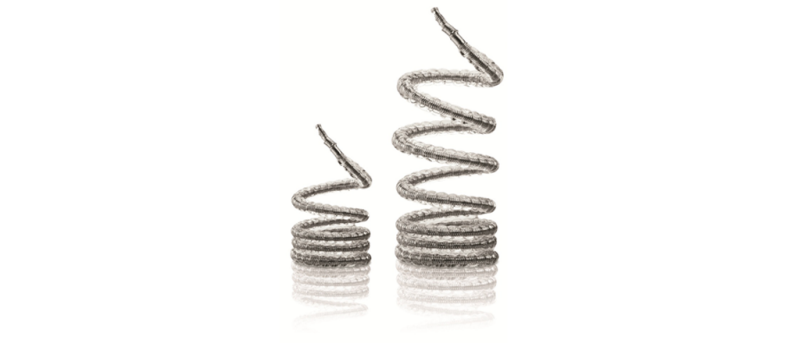

The AZUR Peripheral HydroCoil Embolization System combines a platinum coil and an expandable hydrogel polymer. In concert, these elements provide a uniquely stable and permanent platform for blood stasis, thrombus organization, and neointima formation.1-3 AZUR’s hydrogel coating undergoes limited expansion within the first 3 minutes, and fully expands within 20 minutes*. The result is greater filling and mechanical stability with fewer coils – nearly 5 times more filling volume for the 0.018" coil and 4 times more filling volume for the .035" coil (versus platinum coils of the same size). In other words, AZUR works harder so you don’t have to.
- Superior volume filling, packing density, and occlusion efficacy4
- Superior mechanical stability2, 5
- Offers the potential to use less coils which may provide cost savings per procedure5
*As described in the IFU.
AZUR® HYDROCOIL DETACHABLE 0.018"
PRODUCT CODE | DESCRIPTION 1/BX |
45-480202 | AZUR 18D System 2mm x 2cm |
45-480204 | AZUR 18D System 2mm x 4cm |
45-480302 | AZUR 18D System 3mm x 2cm |
45-480305 | AZUR 18D System 3mm x 5cm |
45-480310 | AZUR 18D System 3mm x 10cm |
45-480405 | AZUR 18D System 4mm x 5cm |
45-480410 | AZUR 18D System 4mm x 10cm |
45-480415 | AZUR 18D System 4mm x 15cm |
45-480420 | AZUR 18D System 4mm x 20cm |
45-480505 | AZUR 18D System 5mm x 5cm |
45-480510 | AZUR 18D System 5mm x 10cm |
45-480515 | AZUR 18D System 5mm x 15cm |
45-480520 | AZUR 18D System 5mm x 20cm |
45-480610 | AZUR 18D System 6mm x 10cm |
45-480615 | AZUR 18D System 6mm x 15cm |
45-480620 | AZUR 18D System 6mm x 20cm |
45-480810 | AZUR 18D System 8mm x 10cm |
45-480815 | AZUR 18D System 8mm x 15cm |
45-480820 | AZUR 18D System 8mm x 20cm |
45-481010 | AZUR 18D System 10mm x 10cm |
45-481015 | AZUR 18D System 10mm x 15cm |
45-481020 | AZUR 18D System 10mm x 20cm |
45-481215 | AZUR 18D System 12mm x 15cm |
45-481220 | AZUR 18D System 12mm x 20cm |
45-481515 | AZUR 18D System 15mm x 15cm |
45-481520 | AZUR 18D System 15mm x 20cm |
45-481530 | AZUR 18D System 15mm x 30cm |
45-482020 | AZUR 18D System 20mm x 20cm |
45-482030 | AZUR 18D System 20mm x 30cm |
AZUR® HYDROCOIL DETACHABLE 0.035”
PRODUCT CODE | LOOP DIAMETER (MM) |
45-450415 | AZUR 35D System 4mm x 15cm |
45-450610 | AZUR 35D System 6mm x 10cm |
45-450620 | AZUR 35D System 6mm x 20cm |
45-450815 | AZUR 35D System 8mm x 15cm |
45-450820 | AZUR 35D System 8mm x 20cm |
45-451015 | AZUR 35D System 10mm x 15cm |
45-451020 | AZUR 35D System 10mm x 20cm |
45-451215 | AZUR 35D System 12mm x 15cm |
45-451220 | AZUR 35D System 12mm x 20cm |
45-451230 | AZUR 35D System 12mm x 30cm |
45-451520 | AZUR 35D System 15mm x 20cm |
45-451530 | AZUR 35D System 15mm x 30cm |
45-452020 | AZUR 35D System 20mm x 20cm |
45-452030 | AZUR 35D System 20mm x 30cm |
AZUR® HYDROCOIL PUSHABLE 0.018”
PRODUCT CODE | DESCRIPTION 3/BX |
45-280202 | AZUR 18P System 2mm x 2cm |
45-280304 | AZUR 18P System 3mm x 4cm |
45-280404 | AZUR 18P System 4mm x 4cm |
45-280406 | AZUR 18P System 4mm x 6cm |
45-280506 | AZUR 18P System 5mm x 6cm |
45-280510 | AZUR 18P System 5mm x 10cm |
45-280606 | AZUR 18P System 6mm x 6cm |
45-280610 | AZUR 18P System 6mm x 10cm |
45-280614 | AZUR 18P System 6mm x 14cm |
45-280620 | AZUR 18P System 6mm x 20cm |
45-280810 | AZUR 18P System 8mm x 10cm |
45-280814 | AZUR 18P System 8mm x 14cm |
45-281020 | AZUR 18P System 10mm x 20cm |
AZUR® HYDROCOIL PUSHABLE 0.035”
PRODUCT CODE | DESCRIPTION 3/BX |
45-250406 | AZUR 35P System 4mm x 6cm |
45-250610 | AZUR 35P System 6mm x 10cm |
45-250614 | AZUR 35P System 6mm x 14cm |
45-250810 | AZUR 35P System 8mm x 10cm |
45-250814 | AZUR 35P System 8mm x 14cm |
45-250820 | AZUR 35P System 8mm x 20cm |
45-251014 | AZUR 35P System 10mm x 14cm |
45-251020 | AZUR 35P System 10mm x 20cm |
45-251514 | AZUR 35P System 15mm x 14cm |
45-251520 | AZUR 35P System 15mm x 20cm |
AZUR® DETACHMENT CONTROLLER FOR USE WITH DETACHABLE SYSTEMS
PRODUCT CODE | DESCRIPTION |
45-4001 | AZUR Detachment Controller |
Pack of 5
References:
- Plenk H, Killer M, Richling B. Pathophysiologic considerations on HydroCoil- and platinum coil-occluded retrieved human cerebral aneurysms. Presented at ASITN MicroVention Symposium. 2005. (in-vivo study)
- Ding YH, Dai D, Lewis DA, Cloft HJ, Kallmes DF. Angiographic and histologic analysis of experimental aneurysms embolized with platinum coils, Matrix, and HydroCoil. AJNR Am J Neuroradiol. 2005 Aug;26(7):1757-63. (animal study)
- Sluzewski M, van Rooij WJ, Slob MJ, Bescós JO, Slump CH, Wijnalda D. Relation between aneurysm volume, packing, and compaction in 145 cerebral aneurysms treated with coils. Radiology. 2004;231(3):653-658.
- Cloft HJ, Kallmes DF. Aneurysm packing with HydroCoil Embolic System versus platinum coils: initial clinical experience. AJNR Am J Neuroradiol. 2004;25(1):60-62.
- Data on File.
RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.
